+207% LIGHT VOLUME.

On average most halogen 55W lamps will produce 850 Lumens per lamp, compared to 1,760 Lumens per lamp for our Copper Heads. Our Lumens are not to be confused with the exaggerated numbers by other vendors, our Copper Heads are properly tested inside of a Photometric Sphere. All that brightness is useless without exacting light distribution, and this is where we really lead the market. We’ve put lots of work into perfecting the beam geometry to ensure that our kits won’t cause glare and cause unwanted light scatter. We back this up with a 30-day money-back guarantee.

BUILT TO LAST.

We’ve moved away from active cooling (fan kits) and adopted passive cooling. Passive cooling not only substantially increases reliability, but the flexible cooling belts of our Copper Heads offer the ability to retain the use of the factory dust caps maintaining the water & dust resistance of the headlight housing.  With a lower profile than that of a fan-cooled kit, compatibility and ease of installation are also much wider.

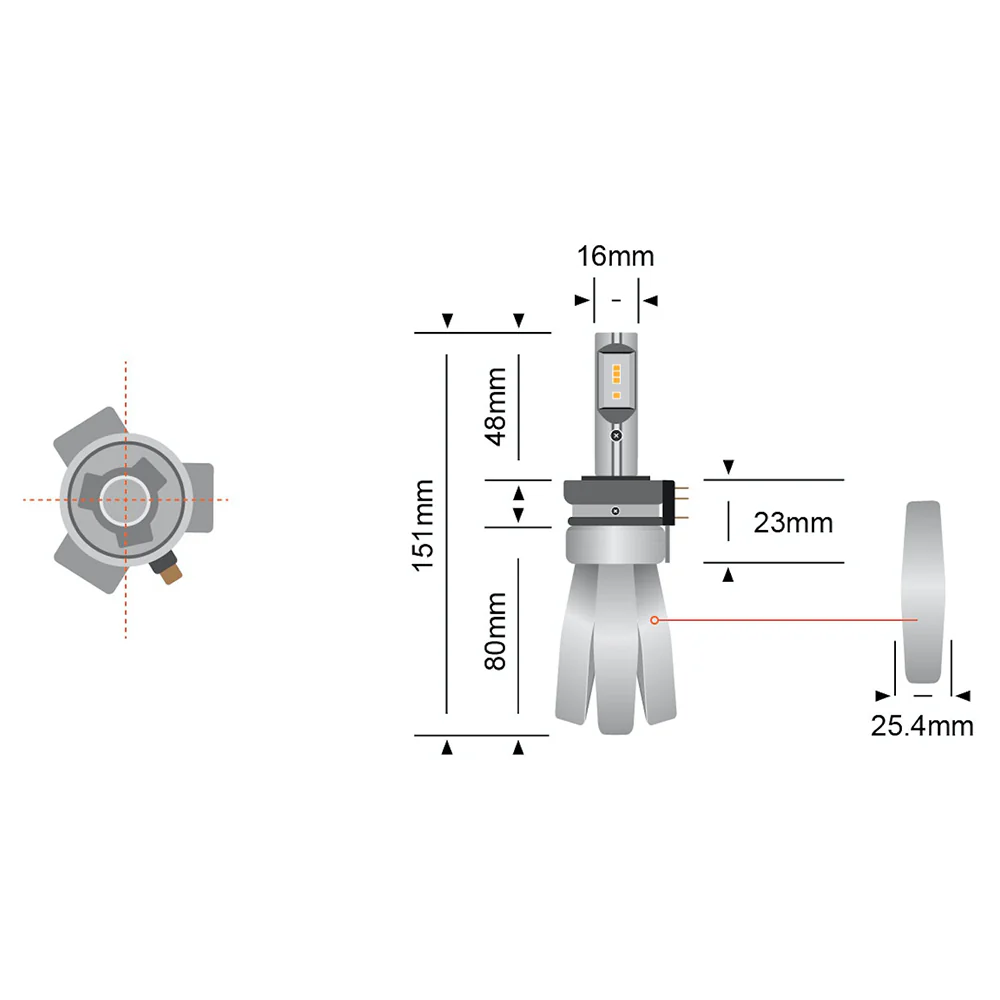

DIMENSIONS

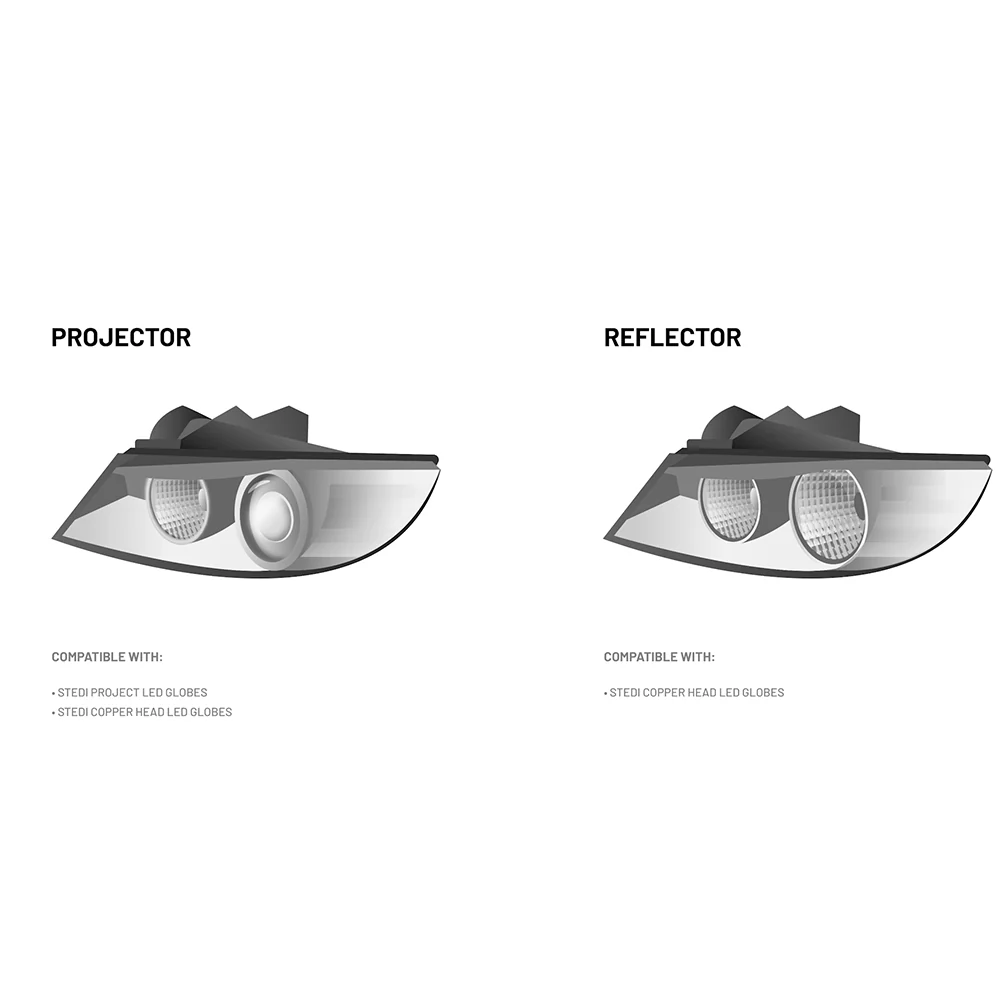

PROJECTOR VS REFLECTOR

INSTALLATION VIDEO

THE NITTY GRITTY.

The STEDI H15 Copper-Head™ LED Headlight kit is not only plug & play but also includes an additional LED to take over the Daytime-Running-Light function exactly as per your standard H15 bulb.

We’ve tested a nauseating amount of different “no fan” LEDs and ultimately rested on our Copper Heads™ for its excellent light distribution, brightness & durability.

MATERIAL & THERMAL MANAGEMENT - Staying cool is the end-all and be-all in the world of LED.  Well-executed thermal management means a higher drive current leading to higher light volume.

• Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity.  The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.

• American-made Down Corning® thermal paste to increase conductivity to 6063 aluminium tower.

• No fan means modern vehicles that have rigid dust covers or fully enclosed headlight bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.

• Smaller driver footprint for tight applications.

• Near identical footprint to stand halogen bulb ensure 100% compatibility.

KEY LIGHTING BENEFITS

• Top Bin Philips© Lumileds Luxeon ZES® LED | We’ve independently verified the authenticity of the Philips© Lumileds used.  The undomed nature of the ZES® provides better optical control with minimal scatter.

• CCT 5700K means colours sync with our auxiliary LED driving lights.

• OEM matching light distribution through the exact positioning of the LED emitters to optimize the vehicle's reflector design as the OEM intended.

• Instant Full Beam without any warm-up time.

TECHNOLOGY

• CANBUS Friendly - resistive Canbus cancellation built-in
• Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicle's headlamp reflector or lenses.
• Electrically Protected again RFI and EM Interference
• Over and Under Voltage Protection
• Waterproof connectors
• Plug and Play H15 Connector | No cutting or professional installation required, as easy as changing the OEM bulb
• Ingress Protection IP65 | means our kits will not fail at the first sign of water.
• True White 5700Kelvin

TECH SPECS

HOUSING MATERIAL	6063 Aviation Aluminium
LED CHIP TYPE	6 x Philip™ ZES + 2 ZES for DRL (Each Lamp)
POWER	1.6A each @ 13.6v
LUMENS	3,450Lm each globe (RAW) 1,760Lm each globe (Actual)
COMPATIBLE VOLTAGE	DC 12v and 24v
LUMEN MAINTENANCE LM-80	50,000 hours
LIFE EXPECTANCY	5,000 hours (9 x longer than halogen)
CANBUS	Built-in
SOCKET TYPE	H15
INGRESS PROTECTION	IP65
OPERATING TEMP	-40°c to + 80°c

WHAT'S INCLUDED

• 2 x H15 STEDI Copper Head Headlight LED Conversion Headlights
• 2 x Driver Modules
• 3M™ Double Sided Tape
• Zip Ties
• User Instruction Manual
