DESCRIPTION

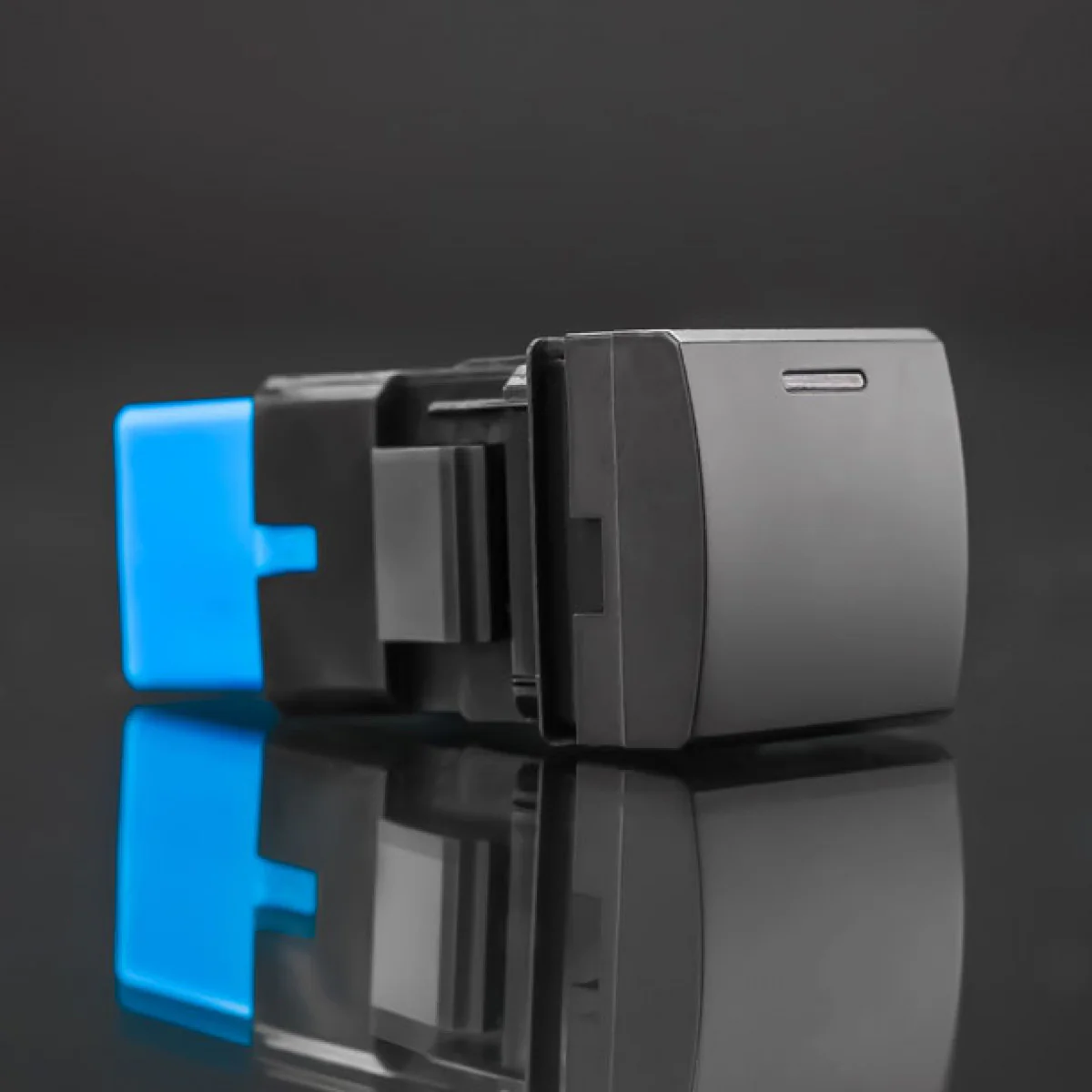

Square 22 x 22mm Push latching type switch designed for the range of STEDI switch fascia panels.

Please note: The 'Blank' option is a plain cap with no switch function

KEY FEATURES

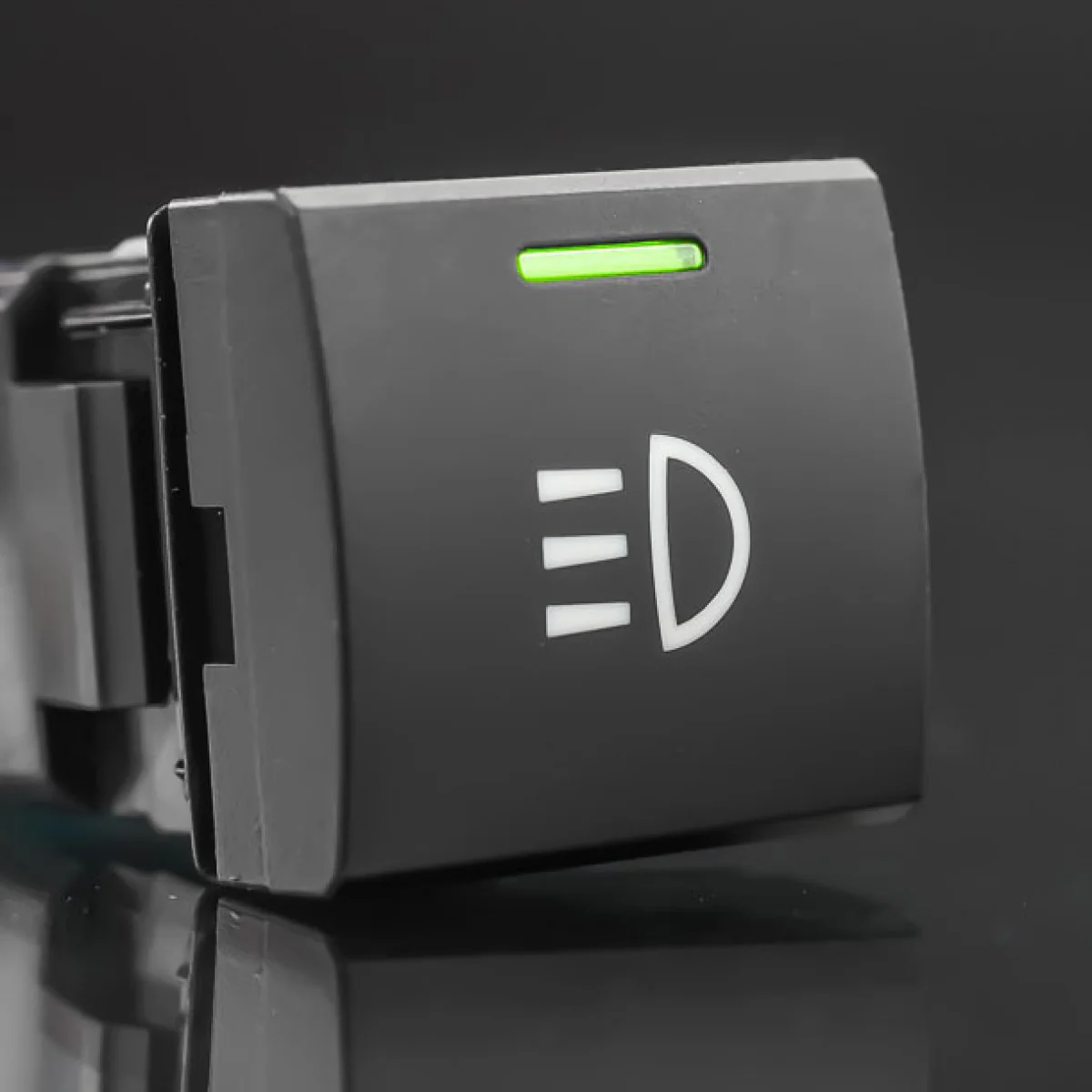

• Ice Blue LED Back Lighting
• Green Upper Light is Active when Power is ON
• Lower Light is Active when Dash Lights are ON
• Laser Etched print ensure our print will never rub off with use
• Rated at 3A on 12v

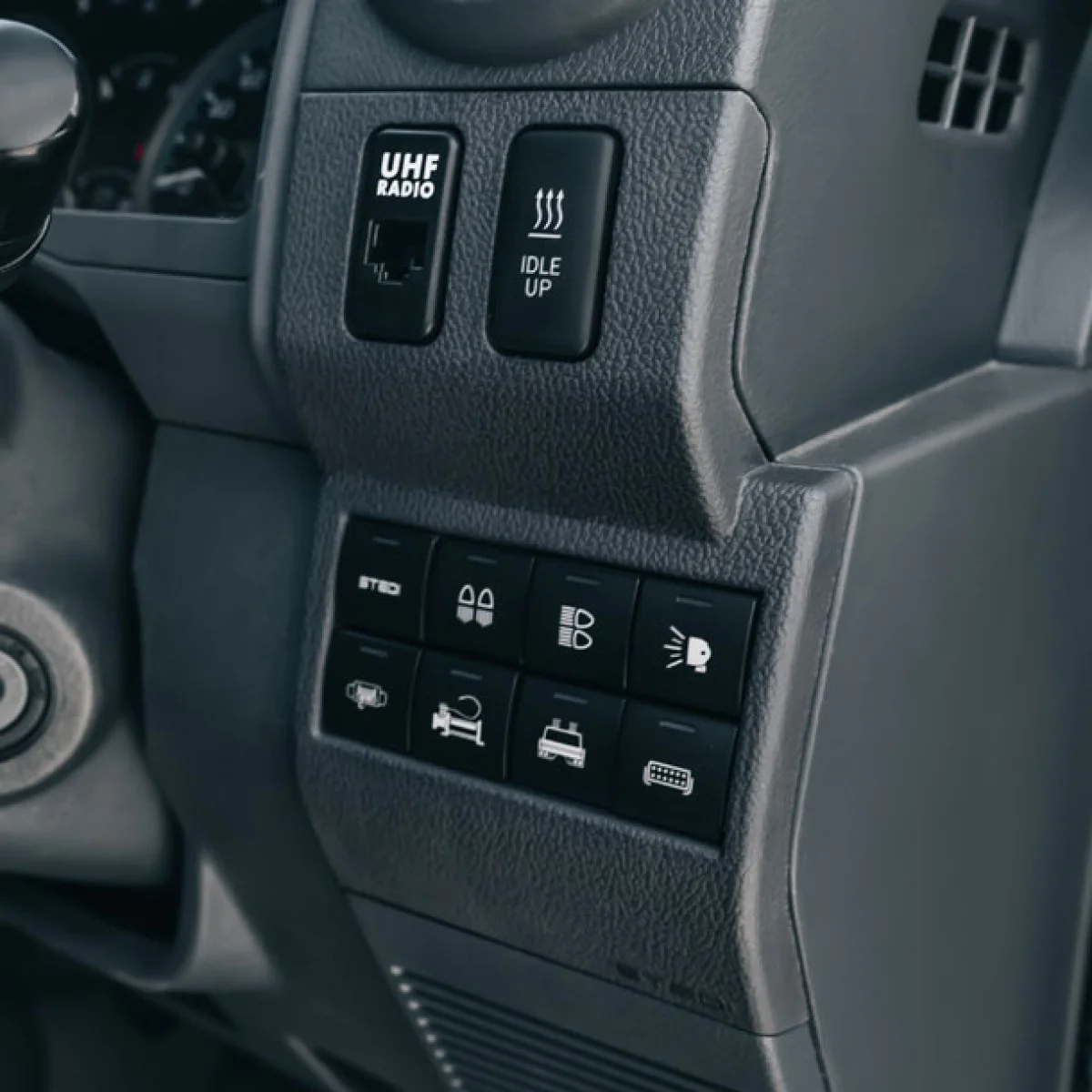

COMPATIBLE FASCIA PANELS

• STEDI 70 Series Panel
• STEDI Ford Everest, Raptor & Ranger Panel

Please ensure all of our switches are always wired through a fused relay.

THE NERDY TECH STUFF

BACKLIGHT COLOUR	Ice Blue Lower and Green Upper
SURFACE SIZE DIMENSIONS	22 x 22mm
RATED	3A @ 12v



WHAT'S IN THE BOX

• 1 x Square Push Button Switch ('blank' does not feature a switch function)
• 1 x Green Connector with Wire Tails (not included with 'blank' option)
• Wiring Diagram

WIRING INSTRUCTIONS VIDEO



WIRING DIAGRAM
