DESCRIPTION

CERTIFIED E-MARK COMPLIANT.

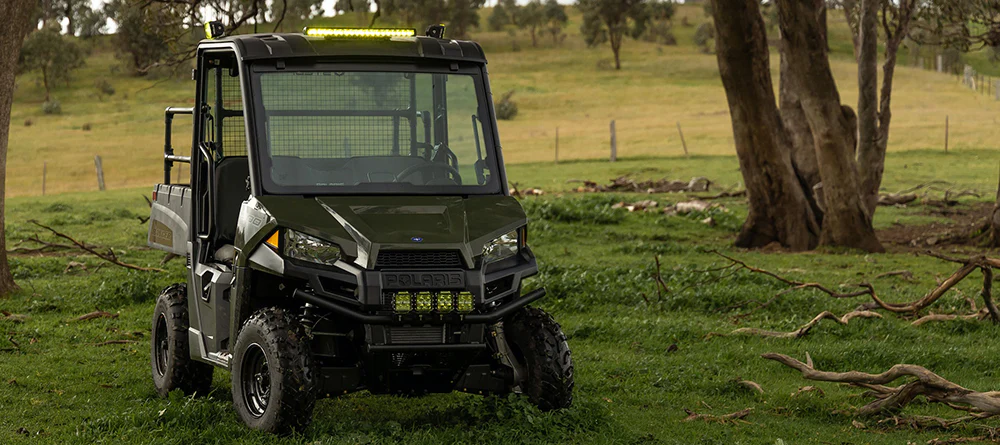

Our new ST1K series is ECE-approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

BITE THE DUST

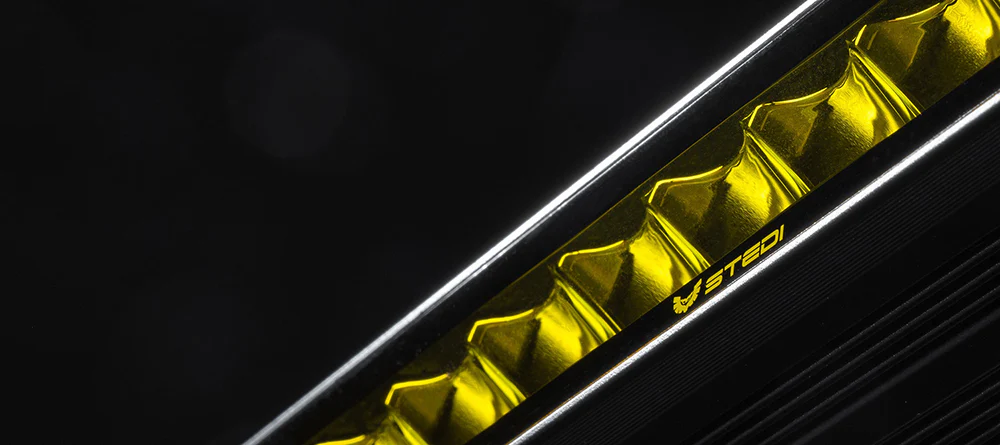

Wide-horizontal beam patterns, coupled with our edge-to-edge yellow bonded lens, ensure maximum visibility across all driving conditions. Peirce through dust and fog like never before, while enjoying a significant reduction in glare and reflection from road signs.

DISCOVER NEW HORIZONS.

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension to the design. The design adds subtle yet high-end styling to any class of vehicle that needs a high-performing stealth driving light.

DIMENSIONS

THE NITTY GRITTY

THE NERDY STUFF

• 20 x 5W OSRAM LEDs
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 - Submersible to 3m
• Environmentally sealed Deutsch DT-2 connectors

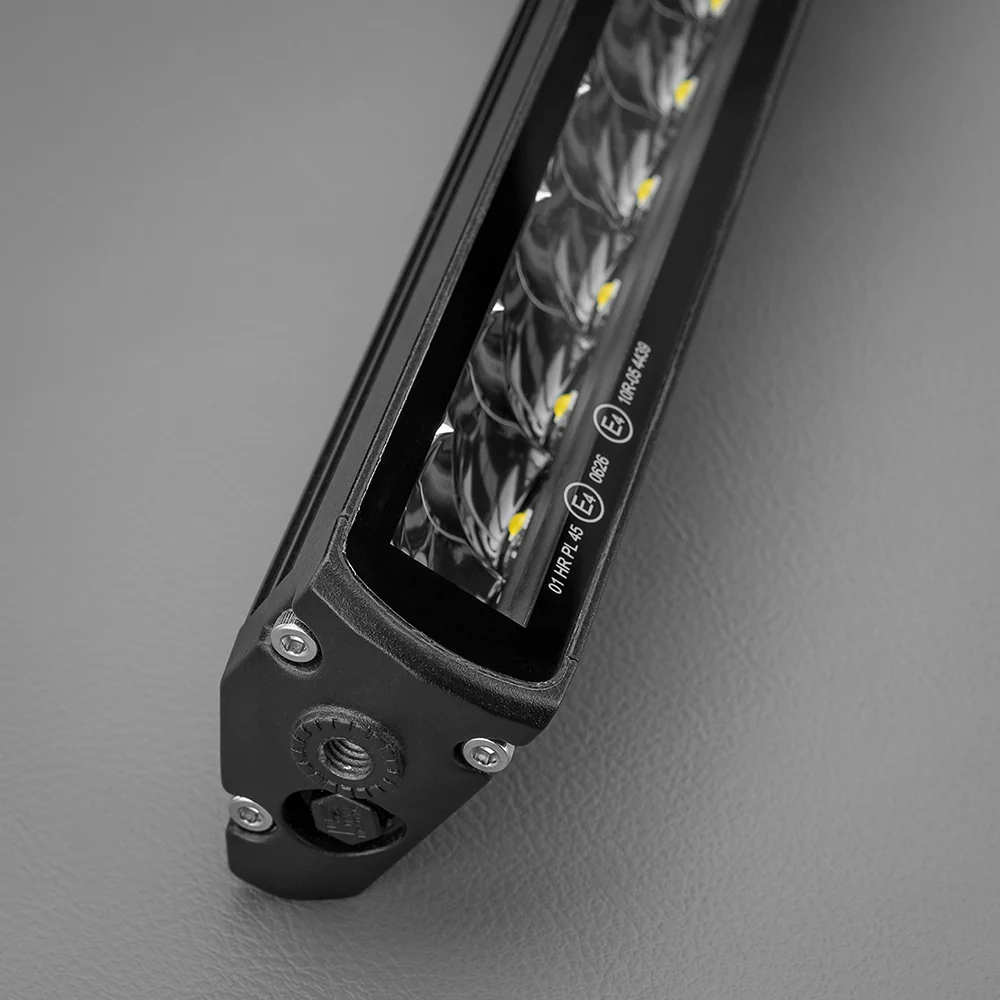

• Innovative hooded optics
• Driving Beam E mark compliant beam.
• Heavy Duty Adjustable Bottom Mounts & Side bracket included.
• Reverse Polarity Protected Circuit (RPPC)
• Electronic Thermal Management
• Built-in Voltage Surge Protection

INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggyback adaptors)

TECH SPECS

LED MANUFACTURER	OSRAM
LED COUNT	20
VOLTAGE	9V - 32V
CURRENT DRAW (AMPERES)	8.0a @13.6v
LENS MATERIAL	Optical Grade, Makrolon
RAW LUMENS	5,920Lm
PEAK INTENSITY (CANDELA)	219,792cd
HOUSING MATERIAL	A360.0 Cast face plate, extruded Aluminum heat sink
LUMEN MAINTENANCE	50,000 (LM80)
INGRESS PROTECTION	IP68
OPERATING TEMP	-40°C~+150°C
WEIGHT	1.290kg



WHAT'S INCLUDED

• ST1K 21.5 Inch LED Light Bar
• Easy Fit High Beam Wiring Harness
• H4 & HB3 adapters to High Beam
• Installation Manual
