DESCRIPTION

UNIVERSAL HOUSING SOLUTION.

If you're looking for an OEM-like LED upgrade, look no further down our Type C fog light which has mounting brackets to suit a wide range of factory fog lamp housing.

UTMOST COMPLIANCE.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

BULL BAR FRIENDLY.

These LED fog lights are a direct fit, using your factory mounting points in behind the standard front bumper, and some aftermarket bull bars which you can view here.

LUX CHART

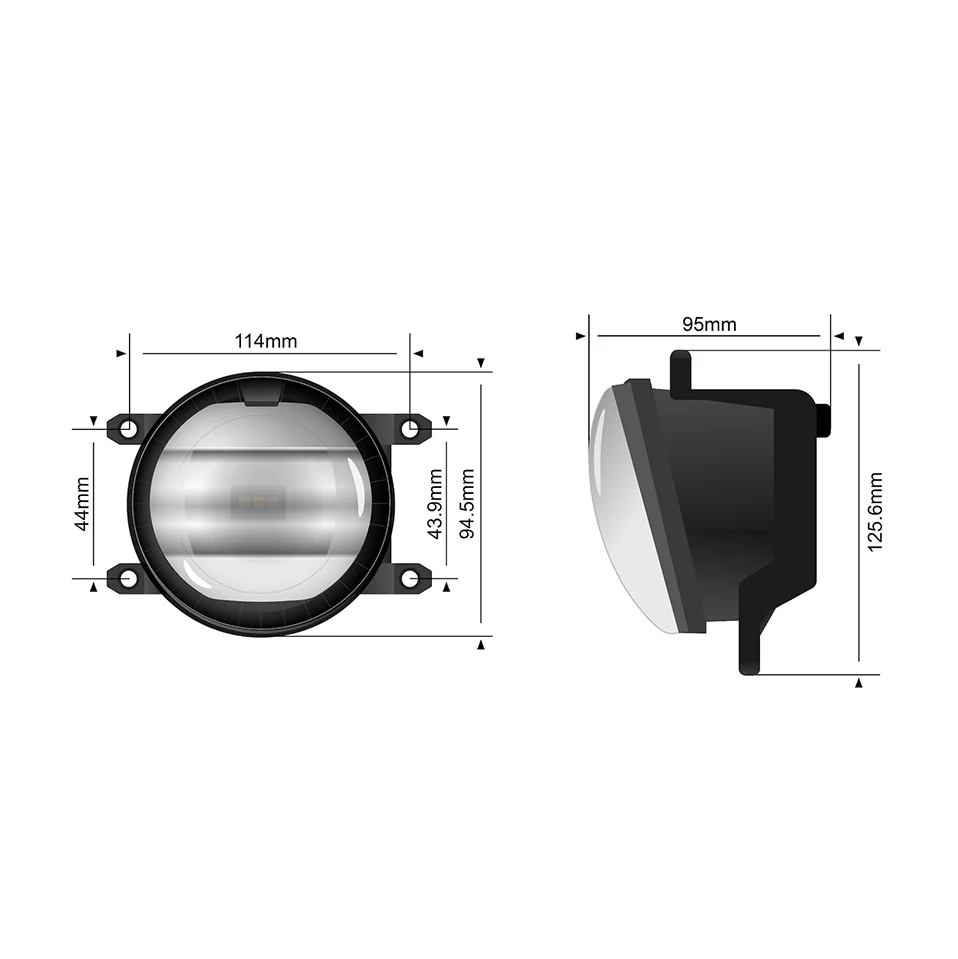

DIMENSIONS

THE NITTY GRITTY.

KEY TECHNICAL DETAILS

These LED fog lights are a direct fit which uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

 Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

Please check below for a full list of compatible vehicles.

BULL BARS

• TJM: T13 Bull Bars with halogen fog lights T13
• Rhino 4x4: Bull Bars

TECH SPECS

HOUSING MATERIAL	Alloy Heat Sink
LED	High Performance Luxeon T LED
LUMEN	960LM (per light)
COMPATIBLE VOLTAGE	12v and 24v
LIFESPAN	50,000hours
CONNECTOR TYPE	Sealed
CERTIFICATION	CE, E4, RoHs, R87, IP67
FOG LIGHT DRAW	0.5a @ 13.6v
DIAMETER	90mm

OEM PART NO#

OE No.: 81210-0W050, 81220-0W040
OE No.: 81210-0W070, 81220-0W070



WHAT'S INCLUDED

• 2 x STEDI Universal Type C Fog Lights
• Fasteners Included
